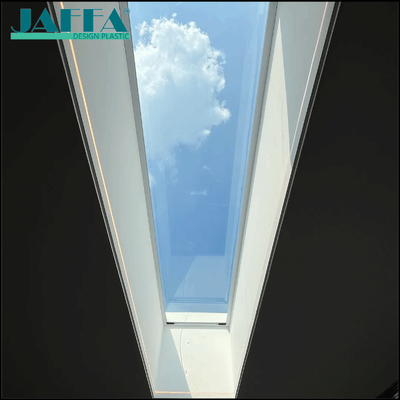

JAFFA Custom Minimalist Acrylic Study Skylight, Narrow-Edge High-Clarity Skylight, Indoor Patio/Attic View Window

JAFFA Custom Minimalist Acrylic Study Skylight, Narrow-Edge High-Clarity Skylight, Indoor Patio/Attic View Window

MOQ: 5set
Price: Negotiable
Payment Terms: L/C,D/P,T/T
Supply Ability: 500sets/Year
Detail Information
Material:
PMMA
Standard Size:
Customizable
Color:
Customizable
Feature:
Luminous
Service:
OEM/ODM
Application:
Mall/Restaurant/Office/Home/Exhibition/Guardrail
Packaging Details:
Wooden box packaging, cardboard box packaging
Highlight:

plexiglass skylight

,

plexiglass dome skylight

,

skylight acrylic dome replacement

Product Description
Description
  • Minimalist Narrow-Edge Lighting Design: Adopts ultra-narrow-edge metal frame with high-transparent acrylic/polycarbonate panel to maximize transparent view, introducing soft natural light during the day and allowing starry sky viewing at night, creating a quiet and open atmosphere for study and tea room.
  • High-Clarity Weather-Resistant Acrylic Material: Made of imported UV-resistant acrylic/polycarbonate panel with thickness 5–12mm, light transmittance up to 92%, soft and non-glare light, high and low temperature resistant, impact-resistant, anti-yellowing, no cracking or discoloration for long-term use, complying with overseas building safety standards.
  • Modular Sealing Structure: Two options are provided: fixed type and opening type (top-hung/sliding). The frame is designed with double-layer water chutes and heat insulation strips, and the panels are spliced with EPDM sealing strips to effectively prevent water leakage and heat insulation, avoiding stuffiness or water leakage in the study.
  • Stable Wind-Resistant Structure: Thickened aluminum alloy/steel frame, firmly connected to the roof/structural layer through expansion bolts, with wind resistance up to level 12 and excellent seismic performance, complying with overseas building safety codes such as ASTM/EN.
  • Multi-Scene Adaptability: Can be used in quiet spaces such as study, tea room, attic, indoor patio and sunroom, combining lighting, viewing and ventilation functions to enhance spatial texture.
  • Eco-Friendly & Safe Craftsmanship: Adopts laser cutting + bending + electrostatic spraying (white/gray frame) + sealing assembly, no odor or formaldehyde, acrylic/polycarbonate material complies with EU ROHS environmental standards, flame retardant grade up to B1.

  • JAFFA Custom Minimalist Acrylic Study Skylight, Narrow-Edge High-Clarity Skylight, Indoor Patio/Attic View Window 0
    Parameter Item (English) Parameter Value (Customizable)
    Material Imported High-Clarity Acrylic/PC Polycarbonate + Aluminum Alloy/Steel Frame + EPDM Sealing Strips
    Color Clear/Light Blue (Panel); White/Gray/Black (Frame)
    Structure Fixed/Top-Hung/Sliding Type + Modular Sealing Assembly
    Standard Size W60–120cm × L120–300cm (Adjustable)
    Thickness Acrylic/PC Panel 5–12mm + Frame Wall Thickness 1.5–3.0mm
    Craftsmanship Laser Cutting + Bending + Electrostatic Spraying + Sealing Assembly
    Weight Per Unit Approx. 30–100 kg (Depends on Size)
    Packaging Custom Wooden Crate + Foam Cotton + Shockproof Pad (Shockproof)
    Installation Method Expansion Bolt Fixing + Waterproof Sealant Construction
    Size Customization Adjustable W/L/Slope, MOQ: 1 Unit
    Form Customization Customizable Fixed/Top-Hung/Sliding/Irregular Shape
    Material Customization Customizable Panel Material/Color/Thickness; Frame Material/Color
    Function Customization Customizable Light Transmittance/Heat Insulation/Flame Retardant/Wind Resistance Grade
    Safety Customization Customizable Frame Thickness/Wind Resistance/Fire Rating
    Waterproof Customization Customizable Water Chute/Sealing Strips

    JAFFA Custom Minimalist Acrylic Study Skylight, Narrow-Edge High-Clarity Skylight, Indoor Patio/Attic View Window 1

FAQ
  1. Is this acrylic skylight suitable for study? Will the lighting be too glare?

    Answer: It is very suitable for study! Although the acrylic/polycarbonate panel has high light transmittance, the light becomes soft and uniform after filtering through the material, no glare, providing a comfortable natural light environment for reading and office work.

  2. How is the weather resistance of acrylic/polycarbonate panels? Does it meet overseas standards?

    Answer: Made of imported UV-resistant material, it is high and low temperature resistant and UV-proof, no yellowing or cracking for long-term use, complying with overseas building safety and environmental standards such as ASTM/EN/CE.

  3. What is the waterproof and heat insulation effect of the skylight?

    Answer: Double-layer water chute + EPDM sealing strip design effectively prevents water leakage; the frame is equipped with heat insulation strips, which can isolate outdoor heat to avoid stuffiness in the study in summer and reduce indoor heat loss in winter.

  4. Does it support customizable opening types?

    Answer: Yes, it can be customized to fixed type (pure lighting) or top-hung/sliding opening type (with ventilation) to meet the ventilation needs of the study.

  5. Is installation and transportation complicated?

    Answer: The modular design can be disassembled for transportation, reducing logistics difficulty; it is installed on-site by a professional team for roof/wall fixing and waterproof sealing construction, with convenient installation and controllable cycle, suitable for various indoor and outdoor scenarios.

JAFFA Custom Minimalist Acrylic Study Skylight, Narrow-Edge High-Clarity Skylight, Indoor Patio/Attic View Window 2
