Acrylic Architecture
Created with Pixso.

JAFFA Custom Acrylic Display Window for Aquarium, High-Clarity Spliced Viewing Panel, Marine Life Ecological Tank Window

JAFFA Custom Acrylic Display Window for Aquarium, High-Clarity Spliced Viewing Panel, Marine Life Ecological Tank Window

MOQ: 5set
Price: Negotiable
Payment Terms: L/C,D/P,T/T
Supply Ability: 500sets/Year
Detail Information
Material:
PMMA
Standard Size:
Customizable
Color:
Customizable
Feature:
Luminous
Service:
OEM/ODM
Application:
Mall/Restaurant/Office/Home/Exhibition/Guardrail
Packaging Details:
Wooden box packaging, cardboard box packaging
Highlight:

Underwater Viewing Window

,

Corrosion Resistance Underwater Viewing Window

,

PMMA Underwater Viewing Window

Product Description
Description

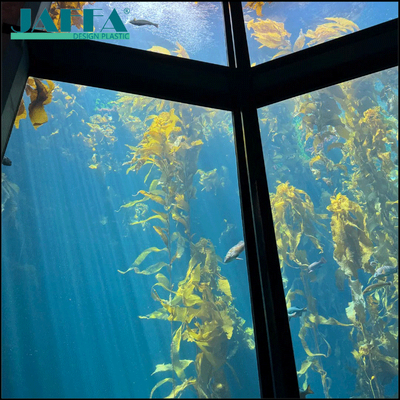

  • High-Clarity Ecological Viewing Design: Adopts high-transparency acrylic panels, which can be spliced into multi-grid/panoramic viewing windows to clearly show underwater ecology such as seaweed and fish schools, becoming the core display window of aquariums.
  • Aquarium-Grade Weather-Resistant Acrylic Material: Made of imported special acrylic panels with thickness 80–300mm. It has excellent water pressure resistance, seawater corrosion resistance and anti-yellowing, with light transmittance over 92%, no bubbles or impurities, maintaining transparency for long-term use, complying with international aquarium safety standards.
  • Modular Splicing Craft: The viewing window is composed of multiple acrylic panels with precise splicing, which can be customized into flat/micro-curved shapes to adapt to different tank structures, realizing large-size viewing surface and flexible layout.
  • Professional Waterproof Sealing System: Adopts aquarium engineering-grade sealant and structural waterproof design. The connection between acrylic and concrete/metal tank is double leak-proof treated, resistant to seawater immersion and water pressure impact, no leakage for long-term use.
  • Safe & Stable Structure: Acrylic panels are firmly connected to the tank through metal frames, able to withstand full water pressure and external loads, complying with overseas aquarium safety codes such as ASTM/EN.
  • Multi-Scene Adaptability: Can be used in aquarium ecological tanks, aquarium display windows, polar pavilions, research aquariums and other scenarios, being a core facility to show marine ecology and enhance tourist experience.
  • Eco-Friendly & Safe Craftsmanship: Adopts high-precision CNC cutting + fine polishing, no harmful substances. The acrylic material complies with EU ROHS environmental standards, harmless to marine life and humans.

JAFFA Custom Acrylic Display Window for Aquarium, High-Clarity Spliced Viewing Panel, Marine Life Ecological Tank Window 0

  • Parameter Item (English) Parameter Value (Customizable)
    Material Imported Aquarium-Grade High-Clarity Acrylic + Metal Frame + Aquarium Engineering-Grade Sealant
    Color High-Clarity Transparent (Customizable Light Blue/Gradient Acrylic)
    Structure Flat/Micro-Curved + Modular Splicing + Multi-Grid/Panoramic Viewing Window
    Standard Size Per Panel: L2–10m × H1–4m × T80–300mm (Adjustable)
    Thickness Acrylic Panel 80–300mm + Frame/Connector 20–100mm
    Craftsmanship CNC Cutting + Fine Polishing + Splicing + Waterproof Treatment
    Weight Per Panel Approx. 200–5000 kg (Depends on Size)
    Packaging Custom Heavy-Duty Wooden Crate + Shockproof Pad + Fixed Steel Frame (Shockproof)
    Installation Method Tank Embedding + Frame Fixing + Sealed Splicing
    Size Customization Adjustable L/H/T, MOQ: 1 Set
    Form Customization Customizable Flat/Micro-Curved/Irregular Shape
    Material Customization Customizable Acrylic Thickness/Color/Light Transmittance/UV Resistance
    Function Customization Customizable Anti-Fog/Scratch Resistance/Light Embedding
    Safety Customization Customizable Water Pressure Resistance/Seismic Grade/Fire Rating
    Waterproof Customization Viewing Window Waterproof Rating IP68 (Upgradable)

    JAFFA Custom Acrylic Display Window for Aquarium, High-Clarity Spliced Viewing Panel, Marine Life Ecological Tank Window 1

  • FAQ
    1. What scenarios is this acrylic display window suitable for?

      Answer: It is suitable for aquarium ecological tanks, aquarium display windows, polar pavilions, research aquariums and other scenarios, being a core facility to show marine ecology and create immersive sightseeing experience.

    2. How durable is the acrylic display window in seawater environment? Does it meet overseas standards?

      Answer: Made of aquarium-grade seawater corrosion-resistant acrylic, it has excellent water pressure resistance and aging resistance. The structural design complies with overseas safety codes such as ASTM/EN/CE, with a service life of over 30 years.

    3. What is the light transmittance and viewing effect of the acrylic panel?

      Answer: The light transmittance is over 92%, and the fine polishing process makes underwater ecology such as seaweed and fish schools clearly visible. The multi-grid splicing design can flexibly adapt to different display needs.

    4. Does it support large-size or multi-grid splicing customization?

      Answer: Yes. Large-size viewing surface can be realized through modular splicing, and multi-grid separated viewing windows can also be customized to meet the display layout needs of different venues.

    5. Is installation and transportation complicated?

      Answer: The modular sectional design can be disassembled for transportation, reducing logistics difficulty. It is installed on-site by a professional team for tank embedding and sealed splicing, with supporting waterproof construction to ensure no leakage for long-term use, and the construction period is controllable.

  • JAFFA Custom Acrylic Display Window for Aquarium, High-Clarity Spliced Viewing Panel, Marine Life Ecological Tank Window 2
