JAFFA Custom Large-Scale Acrylic Transparent Structure, Gradient Glass Brick Wall/Arch Staircase, Outdoor Landscape Art Installation

JAFFA Custom Large-Scale Acrylic Transparent Structure, Gradient Glass Brick Wall/Arch Staircase, Outdoor Landscape Art Installation

MOQ: 5set
Price: Negotiable
Payment Terms: D/P,L/C,T/T
Supply Ability: 500sets/Year
Detail Information
Material:
PMMA
Standard Size:
Customizable
Color:
Customizable
Feature:
Luminous
Service:
OEM/ODM
Application:
Mall/Restaurant/Office/Home/Exhibition/Guardrail
Packaging Details:
Wooden box packaging, cardboard box packaging
Highlight:

acrylic in architecture

,

architectural acrylic

Product Description
Description
  • Diverse Artistic Shape Design: Customizable forms such as gradient glass brick walls and curved transparent staircases, creating a transparent and dreamy outdoor landscape focus through lamination of acrylic blocks/sheets, becoming the core art installation for commercial complexes, high-end residences and parks.
  • High-Clarity/Gradient Colored Acrylic Material: Made of imported high-transparent or gradient colored acrylic, with thickness 5–50mm (glass brick) / 20–100mm (stair tread), light transmittance over 90%, weather-resistant and UV-resistant, impact-resistant, no yellowing or deformation for long-term use, complying with overseas outdoor landscape safety standards.
  • Modular Splicing/Steel Structure Support: The landscape wall is built with acrylic glass bricks + metal frames in modules, and the staircase is supported by transparent acrylic treads + steel structure keels, prefabricated in the factory and assembled on-site, adapting to different sites and shape needs.
  • Light and Shadow Gradient Effect: Gradient glass bricks/transparent sheets present layered light and shadow changes under natural light, and can be matched with lights at night to create a dreamy and transparent visual effect.
  • Safe and Stable Structure: The landscape wall is reinforced with metal frames, and the staircase is supported by steel structure keels + stainless steel cables, calculated by professional mechanics, with high wind and earthquake resistance, complying with overseas building safety codes such as ASTM/EN.
  • Multi-Scene Adaptability: Can be used in commercial park landscape walls, high-end residence outdoor staircases, hotel atrium installations, cultural and tourist scenic spot check-in points and other scenarios.
  • Eco-Friendly & Safe Craftsmanship: Adopts non-toxic and environmentally friendly acrylic material, no formaldehyde or odor, complies with EU ROHS environmental standards, flame retardant grade up to B1, harmless to humans and the environment.

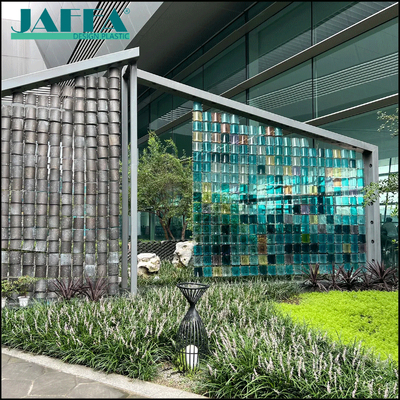

JAFFA Custom Large-Scale Acrylic Transparent Structure, Gradient Glass Brick Wall/Arch Staircase, Outdoor Landscape Art Installation 0

Parameter Item (English) Parameter Value (Customizable)
Material Imported High-Transparent/Gradient Acrylic + Stainless Steel/Aluminum Alloy Frame + Steel Structure Keel
Color Transparent/Gradient Blue/Gradient Gray/Gradient Green (Customizable)
Structure Glass Brick Wall/Arch Staircase + Modular Assembly + Steel Structure Support
Standard Size Wall: H2–4m × W3–10m; Staircase: L3–10m (Adjustable)
Thickness Acrylic Glass Brick 5–50mm / Stair Tread 20–100mm
Craftsmanship CNC Cutting + Hot Bending + Polishing + Modular Assembly
Weight Per Module Wall Module: 20–50 kg; Stair Tread: 10–30 kg (Depends on Size)
Packaging Custom Wooden Crate + Foam Cotton + Shockproof Pad (Shockproof)
Installation Method Frame Fixing / Steel Structure Embedding + On-Site Splicing
Size Customization Adjustable H/W/L, MOQ: 1 Set
Form Customization Customizable Wall/Staircase/Arch/Irregular Installation
Material Customization Customizable Acrylic Color/Thickness/Light Transmittance
Function Customization Integratable Light Embedding/Waterproof Treatment
Safety Customization Customizable Wind Resistance/Load-Bearing/Fire Rating

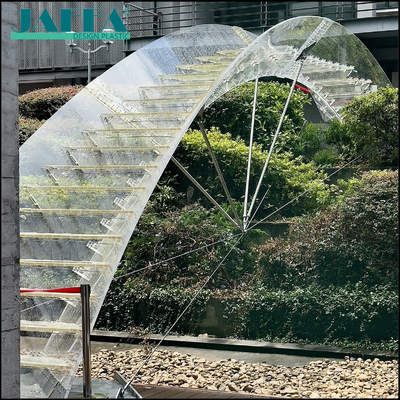

JAFFA Custom Large-Scale Acrylic Transparent Structure, Gradient Glass Brick Wall/Arch Staircase, Outdoor Landscape Art Installation 1

FAQ
  1. What scenarios is this acrylic transparent structure suitable for?

    Answer: It is suitable for commercial park landscape walls, high-end residence outdoor staircases, hotel atrium installations, cultural and tourist scenic spot check-in points and other scenarios, being a core art installation to create transparent and dreamy landscapes.

  2. How is the weather resistance of acrylic in outdoor environment? Does it meet overseas standards?

    Answer: Made of imported weather-resistant and UV-resistant acrylic, it is high and low temperature resistant, wind and rain resistant, no yellowing or cracking for long-term use. The structural design complies with overseas building safety codes such as ASTM/EN/CE, with a service life of over 15 years.

  3. What is the light and shadow effect of gradient glass bricks?

    Answer: The gradient colored acrylic glass bricks present layered blue/green gradients under natural light, forming dreamy light and shadow when light passes through, and the effect is more atmospheric with bottom lights at night.

  4. What is the load-bearing capacity and safety of the curved transparent staircase?

    Answer: The stair treads are made of thickened acrylic, supported by steel structure keels and stainless steel cables. Professional mechanical calculation ensures the load-bearing capacity up to 350kg/㎡, complying with overseas public staircase safety standards.

  5. Is installation and transportation complicated?

    Answer: The modular sectional design can be disassembled for transportation, reducing logistics difficulty; it is installed on-site by a professional team for steel structure embedding and module splicing, with supporting waterproof/light treatment, the construction period is controllable, safe and efficient.

JAFFA Custom Large-Scale Acrylic Transparent Structure, Gradient Glass Brick Wall/Arch Staircase, Outdoor Landscape Art Installation 2
