Custom Large-Scale Acrylic Transparent Structure, Gradient Glass Brick Wall/Arch Staircase, Outdoor Landscape Art Installation

Custom Large-Scale Acrylic Transparent Structure, Gradient Glass Brick Wall/Arch Staircase, Outdoor Landscape Art Installation

MOQ: 5set
Price: Negotiable
Payment Terms: D/P,L/C,T/T
Supply Ability: 500sets/Year
Detail Information
Material:
PMMA
Standard Size:
Customizable
Color:
Customizable
Feature:
Luminous
Service:
OEM/ODM
Application:
Mall/Restaurant/Office/Home/Exhibition/Guardrail
Packaging Details:
Wooden box packaging, cardboard box packaging
Highlight:

acrylic in architecture

,

architectural acrylic

Product Description
Description
  • Diverse Artistic Shape Design: Customizable forms such as gradient glass brick walls and curved transparent staircases, creating a transparent and dreamy outdoor landscape focus through lamination of acrylic blocks/sheets, becoming the core art installation for commercial complexes, high-end residences and parks.
  • High-Clarity/Gradient Colored Acrylic Material: Made of imported high-transparent or gradient colored acrylic, with thickness 5–50mm (glass brick) / 20–100mm (stair tread), light transmittance over 90%, weather-resistant and UV-resistant, impact-resistant, no yellowing or deformation for long-term use, complying with overseas outdoor landscape safety standards.
  • Modular Splicing/Steel Structure Support: The landscape wall is built with acrylic glass bricks + metal frames in modules, and the staircase is supported by transparent acrylic treads + steel structure keels, prefabricated in the factory and assembled on-site, adapting to different sites and shape needs.
  • Light and Shadow Gradient Effect: Gradient glass bricks/transparent sheets present layered light and shadow changes under natural light, and can be matched with lights at night to create a dreamy and transparent visual effect.
  • Safe and Stable Structure: The landscape wall is reinforced with metal frames, and the staircase is supported by steel structure keels + stainless steel cables, calculated by professional mechanics, with high wind and earthquake resistance, complying with overseas building safety codes such as ASTM/EN.
  • Multi-Scene Adaptability: Can be used in commercial park landscape walls, high-end residence outdoor staircases, hotel atrium installations, cultural and tourist scenic spot check-in points and other scenarios.
  • Eco-Friendly & Safe Craftsmanship: Adopts non-toxic and environmentally friendly acrylic material, no formaldehyde or odor, complies with EU ROHS environmental standards, flame retardant grade up to B1, harmless to humans and the environment.

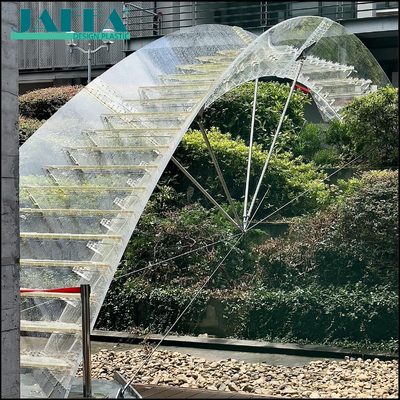

Custom Large-Scale Acrylic Transparent Structure, Gradient Glass Brick Wall/Arch Staircase, Outdoor Landscape Art Installation 0

Parameter Item (English) Parameter Value (Customizable)
Material Imported High-Transparent/Gradient Acrylic + Stainless Steel/Aluminum Alloy Frame + Steel Structure Keel
Color Transparent/Gradient Blue/Gradient Gray/Gradient Green (Customizable)
Structure Glass Brick Wall/Arch Staircase + Modular Assembly + Steel Structure Support
Standard Size Wall: H2–4m × W3–10m; Staircase: L3–10m (Adjustable)
Thickness Acrylic Glass Brick 5–50mm / Stair Tread 20–100mm
Craftsmanship CNC Cutting + Hot Bending + Polishing + Modular Assembly
Weight Per Module Wall Module: 20–50 kg; Stair Tread: 10–30 kg (Depends on Size)
Packaging Custom Wooden Crate + Foam Cotton + Shockproof Pad (Shockproof)
Installation Method Frame Fixing / Steel Structure Embedding + On-Site Splicing
Size Customization Adjustable H/W/L, MOQ: 1 Set
Form Customization Customizable Wall/Staircase/Arch/Irregular Installation
Material Customization Customizable Acrylic Color/Thickness/Light Transmittance
Function Customization Integratable Light Embedding/Waterproof Treatment
Safety Customization Customizable Wind Resistance/Load-Bearing/Fire Rating

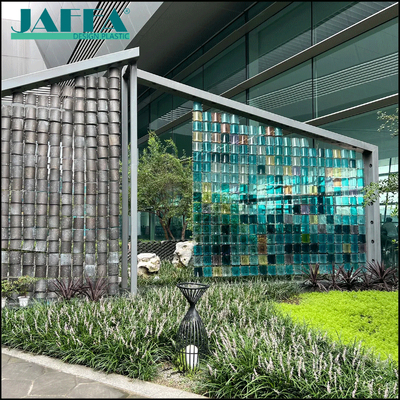

Custom Large-Scale Acrylic Transparent Structure, Gradient Glass Brick Wall/Arch Staircase, Outdoor Landscape Art Installation 1

FAQ
  1. What scenarios is this acrylic transparent structure suitable for?

    Answer: It is suitable for commercial park landscape walls, high-end residence outdoor staircases, hotel atrium installations, cultural and tourist scenic spot check-in points and other scenarios, being a core art installation to create transparent and dreamy landscapes.

  2. How is the weather resistance of acrylic in outdoor environment? Does it meet overseas standards?

    Answer: Made of imported weather-resistant and UV-resistant acrylic, it is high and low temperature resistant, wind and rain resistant, no yellowing or cracking for long-term use. The structural design complies with overseas building safety codes such as ASTM/EN/CE, with a service life of over 15 years.

  3. What is the light and shadow effect of gradient glass bricks?

    Answer: The gradient colored acrylic glass bricks present layered blue/green gradients under natural light, forming dreamy light and shadow when light passes through, and the effect is more atmospheric with bottom lights at night.

  4. What is the load-bearing capacity and safety of the curved transparent staircase?

    Answer: The stair treads are made of thickened acrylic, supported by steel structure keels and stainless steel cables. Professional mechanical calculation ensures the load-bearing capacity up to 350kg/㎡, complying with overseas public staircase safety standards.

  5. Is installation and transportation complicated?

    Answer: The modular sectional design can be disassembled for transportation, reducing logistics difficulty; it is installed on-site by a professional team for steel structure embedding and module splicing, with supporting waterproof/light treatment, the construction period is controllable, safe and efficient.

Custom Large-Scale Acrylic Transparent Structure, Gradient Glass Brick Wall/Arch Staircase, Outdoor Landscape Art Installation 2
