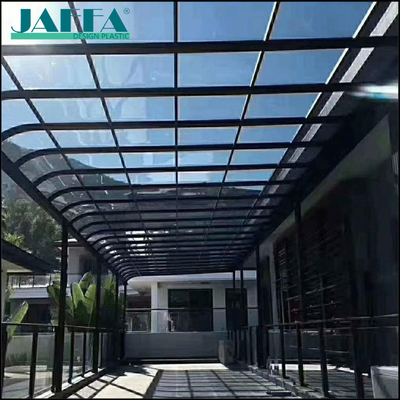

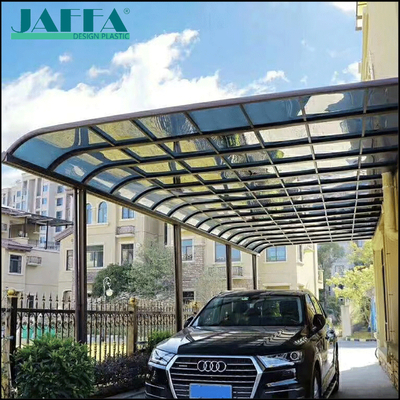

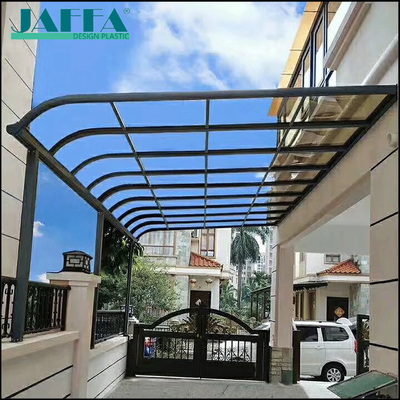

JAFFA Custom Acrylic Skylight Roof, Curved Transparent Carport/Corridor Canopy, Outdoor Polycarbonate Sun & Rain Shelter

MOQ:	5set
Price:	Negotiable
Payment Terms:	L/C,D/P,T/T
Supply Ability:	500sets/Year

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Material:

PMAA

Standard Size:

Customizable

Color:

Customizable

Feature:

Rotatable

Service:

OEM/ODM

Application:

Mall/Restaurant/Office/Home/Exhibition/Guardrail

Packaging Details:

Wooden box packaging, cardboard box packaging

Highlight:

acrylic in architecture

architectural acrylic

Product Description

Description

Curved Transparent Lighting Design: Adopts high-clarity acrylic/polycarbonate panels with curved metal frames, ensuring sufficient natural light while effectively shading and blocking rain, ideal for outdoor scenarios such as villa carports, corridors and terraces.
High-Weather Resistance Acrylic/PC Material: Made of imported UV-resistant acrylic or PC polycarbonate with thickness 3–10mm, impact-resistant, high and low temperature resistant, UV-proof, no yellowing or cracking for long-term use, light transmittance up to 92%, complying with overseas outdoor building material safety standards.
Modular Splicing Structure: The canopy is composed of multiple acrylic panels + aluminum alloy/steel frames in sections, customizable into single-slope/curved/multi-span shapes to adapt to different sizes and layouts of carports, corridors and terraces.
Waterproof Drainage System: The frame is designed with water chutes and slopes, and the panels are spliced with sealing strips to effectively prevent rain leakage and drain quickly, avoiding water accumulation and corrosion.
Stable Wind-Resistant Structure: The aluminum alloy/steel frame is thickened, firmly connected to the building main body through expansion bolts, with wind resistance up to level 12, adapting to coastal and windy areas, complying with overseas building safety codes such as ASTM/EN.
Multi-Scene Adaptability: Can be used in villa carports, residential corridors, terrace skylights, commercial door head canopies and other scenarios, combining aesthetic and practical functions.
Eco-Friendly & Safe Craftsmanship: Adopts laser cutting + bending + sealing assembly, no odor or formaldehyde, acrylic/PC material complies with EU ROHS environmental standards, flame retardant grade up to B1.

JAFFA Custom Acrylic Skylight Roof, Curved Transparent Carport/Corridor Canopy, Outdoor Polycarbonate Sun & Rain Shelter 0

Parameter Item (English)	Parameter Value (Customizable)
Material	Imported High-Clarity Acrylic/PC Polycarbonate + Aluminum Alloy/Steel Frame + Sealing Strips
Color	Clear/Lake Blue/Smoke Gray (Customizable)
Structure	Single-Slope/Curved/Multi-Span + Modular Assembly
Standard Size	Single Span: W3–6m × L3–20m (Adjustable)
Thickness	Acrylic/PC Panel 3–10mm + Frame Wall Thickness 1.2–3.0mm
Craftsmanship	Laser Cutting + Bending + Polishing + Sealing Assembly
Weight Per Span	Approx. 50–200 kg (Depends on Size)
Packaging	Custom Carton/Wooden Frame + Bubble Film + Pearl Cotton (Shockproof)
Installation Method	Expansion Bolt Fixing + Sealed Splicing
Size Customization	Adjustable W/L, MOQ: 1 Set
Form Customization	Customizable Single-Slope/Curved/Multi-Span/Irregular Shape
Material Customization	Customizable Panel Material/Color/Thickness
Function Customization	Customizable Light Transmittance/Flame Retardant Grade/Wind Resistance Grade
Safety Customization	Customizable Frame Material/Thickness/Wind Resistance Grade
Waterproof Customization	Customizable Water Chute/Sealing Strips

JAFFA Custom Acrylic Skylight Roof, Curved Transparent Carport/Corridor Canopy, Outdoor Polycarbonate Sun & Rain Shelter 1

FAQ

What scenarios is this acrylic skylight roof suitable for? Answer: It is suitable for outdoor scenarios such as villa carports, residential corridors, terrace skylights and commercial door head canopies, being an ideal choice balancing lighting, sunshade and rain protection.
How is the weather resistance of acrylic/PC panels? Does it meet overseas standards? Answer: Made of imported UV-resistant material, it is high and low temperature resistant and UV-proof, no yellowing or cracking for long-term use, complying with overseas outdoor building material safety and environmental standards such as ASTM/EN/CE.
What is the waterproof and drainage effect of the skylight roof? Answer: The frame is designed with water chutes and slopes, and the panels are spliced with sealing strips to effectively prevent rain leakage and drain quickly, avoiding water accumulation and corrosion of the frame and panels.
Does it support large-span or multi-span customization? Answer: Yes. Multi-span continuous canopies can be realized through modular splicing, with a maximum span of 6m, adapting to long-distance scenarios such as carports and corridors.
Is installation and transportation complicated? Answer: The modular sectional design can be disassembled for transportation, reducing logistics difficulty; it is installed on-site by a professional team for frame fixing and panel sealing assembly, with convenient construction and controllable cycle.

JAFFA Custom Acrylic Skylight Roof, Curved Transparent Carport/Corridor Canopy, Outdoor Polycarbonate Sun & Rain Shelter 2
